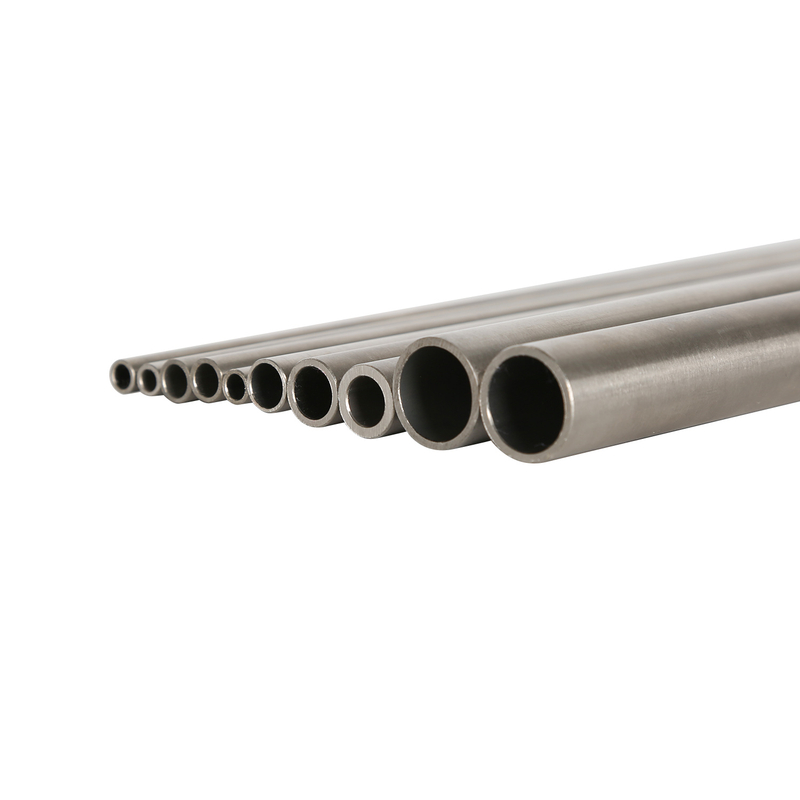

Product Name: En10216-5 1.4404 Stainless Hydraulic Steel Tube
Product Description:
The En10216-5 1.4404 Stainless Hydraulic Steel Tube is a premium-grade tubing solution designed for hydraulic systems and applications requiring corrosion resistance and high mechanical strength. Manufactured according to EN10216-5 standards, this stainless steel tube offers exceptional performance and reliability in demanding environments. With its superior material composition and precision engineering, it serves as a critical component in hydraulic systems across various industries.
Key Features:
Stainless Steel Construction: Crafted from high-quality stainless steel (1.4404), ensuring superior corrosion resistance and longevity.
Hydraulic Applications: Specifically designed for use in hydraulic systems, offering optimal performance under high-pressure conditions.
EN10216-5 Compliance: Manufactured in compliance with EN10216-5 standards, guaranteeing quality, reliability, and dimensional accuracy.
Mechanical Strength: Exhibits excellent mechanical properties, providing durability and stability in demanding operating conditions.
Versatile Use: Suitable for a wide range of hydraulic applications in industries such as automotive, aerospace, marine, and manufacturing.
Technical Specifications:
| Parameter | En10216-5 1.4404 Stainless Steel Tube |
|---|---|
| Material Grade | 1.4404 (X2CrNiMo17-12-2) |
| Outer Diameter (mm) | 4mm - 60mm |
| Wall Thickness (mm) | 0.5mm - 8mm |
| Length (m) | 6m, 12m, or customized |
| Surface Finish | Cold finished, Annealed ，Pickled，Polished and electro-polished |
| Tolerance | According to EN10216-5 standards |
| Heat Treatment | Solution Annealing, Quenching, Tempering |
| Mechanical Properties | Tensile Strength: ≥ 520 MPa |
| Yield Strength: ≥ 210 MPa | |
| Elongation: ≥ 40% (longitudinal) | |
| Corrosion Resistance | Excellent resistance to corrosion in various environments, including acids, alkalis, and chloride solutions |
| Application | Hydraulic systems, Instrumentation, Chemical processing, Automotive, Aerospace |
Hydraulic Systems: Widely used in hydraulic systems due to its excellent strength-to-weight ratio and resistance to wear and corrosion.
Food and Beverage Industry: Suitable for piping and tubing in environments requiring high hygiene standards.
Chemical and Pharmaceutical Industry: Used for transporting corrosive substances due to its chemical resistance.
Marine Applications: Ideal for use in marine environments due to its resistance to seawater corrosion.
General Engineering: Utilized in various engineering applications where durability and longevity are essential.
Packaging:Each En10216-5 1.4404 Stainless Hydraulic Steel Tube is carefully packaged to ensure protection during transportation and storage, safeguarding against damage and contamination.
Quality Assurance:Our stringent quality control measures ensure that each tube meets the highest standards of quality, dimensional accuracy, and performance. Compliance with EN10216-5 standards guarantees reliability and consistency in every product.
Conclusion:In summary, the En10216-5 1.4404 Stainless Hydraulic Steel Tube offers exceptional performance, reliability, and durability for hydraulic applications across various industries. With its stainless steel construction, compliance with EN10216-5 standards, and superior mechanical properties, it is the ideal choice for hydraulic systems requiring corrosion resistance, mechanical strength, and longevity. Trust this tube to deliver unmatched performance and reliability in the most demanding environments.
Tube packed in pieces by Plastic foil and then put into boxes
